Model No.: Slip-On Pipe Flanges
Standard: ASTM, bs, MAKAN, GB
Sama Ada Aloi: Bukan aloi
Bertolak Ansur: ± 1%
Perkhidmatan Pemprosesan: Kimpalan, Menyahtapis, Menumbuk
Tolerance: ±1%
Nama produk: Slip-On Pipe Flanges
Size: 1/2” to 60”, DN 12mm to DN 1500mm
Pressure Class: Class 150 to Class 2,500, PN 2.5 to PN 250
Facing: RF / RTJ
Cabon Steel: A105, A350 LF2
Stainless Steel: A182 F304/F304L/F316/F316L/F321
Alloy Steel: F11, F12
Pembungkusan: Standard Export Packaging
Pembungkusan: Pembungkusan marin standard, atau seperti yang dikehendaki oleh pelanggan
Produktiviti: 10000 Tons Per Month
Pengangkutan: Ocean,Land,Express
Sokongan mengenai: 10000 Tons Per Month
Kod HS: 3917400000
Jenis bayaran: T/T,D/P,Money Gram,L/C
Incoterm: FOB,CFR,CIF,EXW

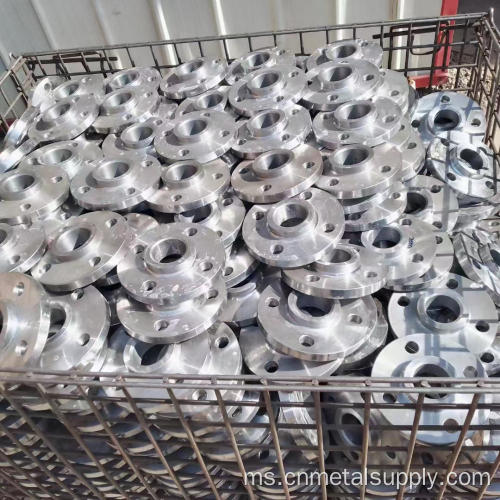

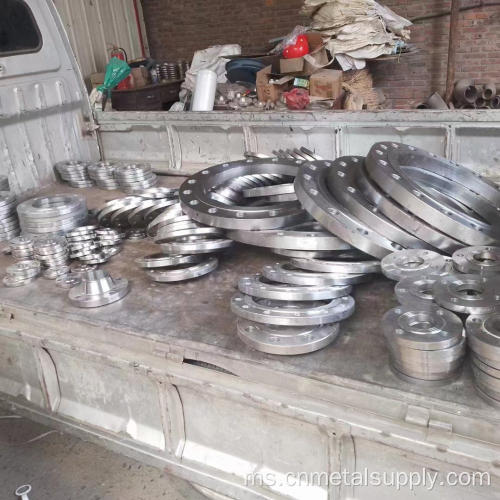

Flange slip-on juga wujud sebagai pengurangan di mana kosong flange slip-on yang lebih besar dipotong untuk menampung saiz sambungan yang lebih kecil. Flange mengurangkan slip digunakan apabila mengurangkan saiz garis di kawasan di mana terdapat batasan ruang.
Kelebihan slip pada bebibir:
Flanges slip atau bebibir biasanya lebih rendah harga daripada bebibir kimpalan-leher, dan kesan ini adalah pilihan yang popular untuk pelanggan kami.
Bebibir paip pemasangan kos rendah dan kelengkapan
Kurang masa yang diperlukan untuk dibelanjakan untuk memastikan ketepatan plat keluli aloi paip potong
Mereka agak mudah diselaraskan
Bebibir slip-on mempunyai hab yang rendah kerana paip tergelincir ke dalam bebibir sebelum kimpalan
Flange dikimpal di dalam dan di luar untuk memberikan kekuatan SMLS SMLS yang cukup kekuatan
Mereka menghalang kebocoran

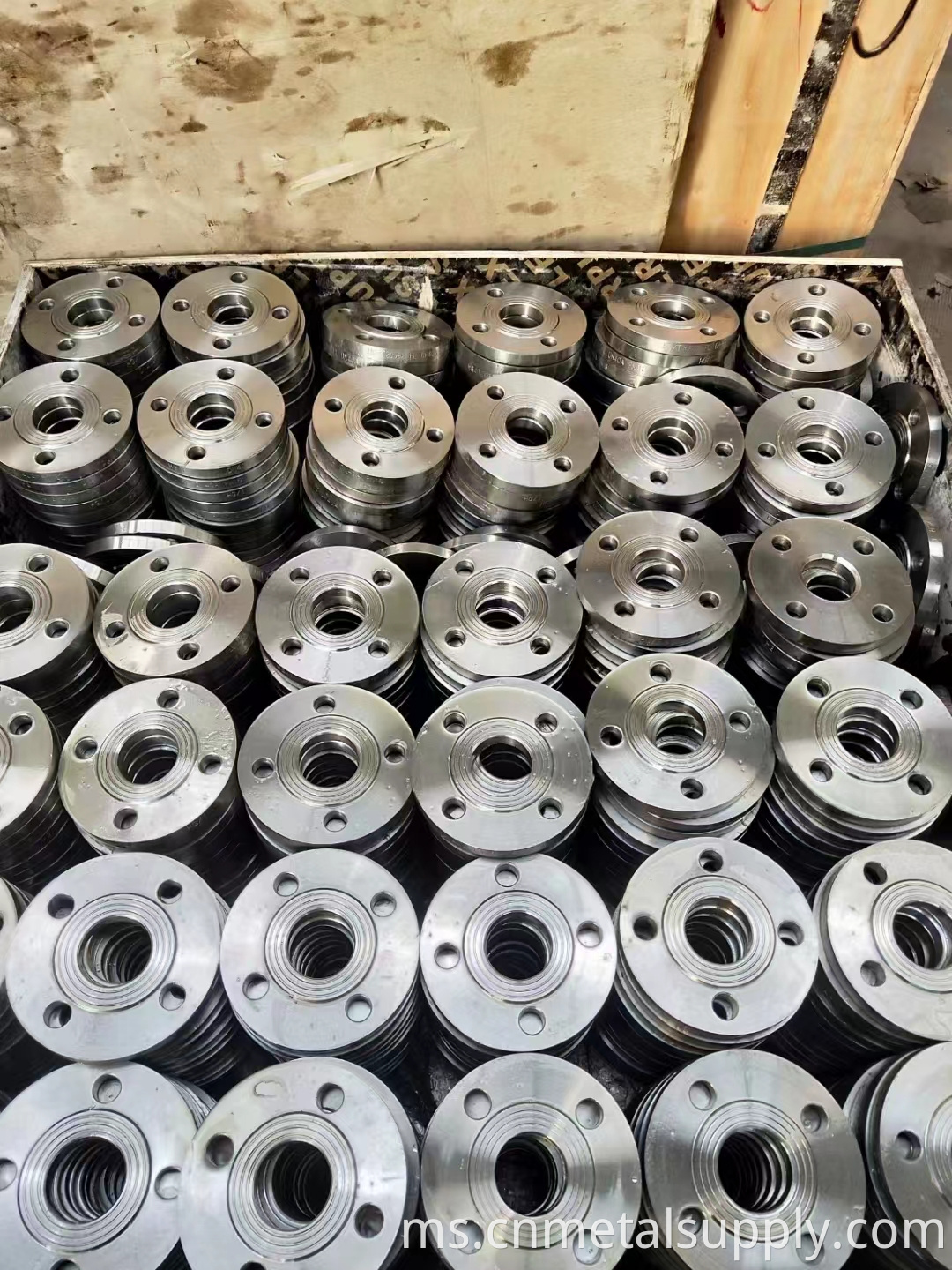

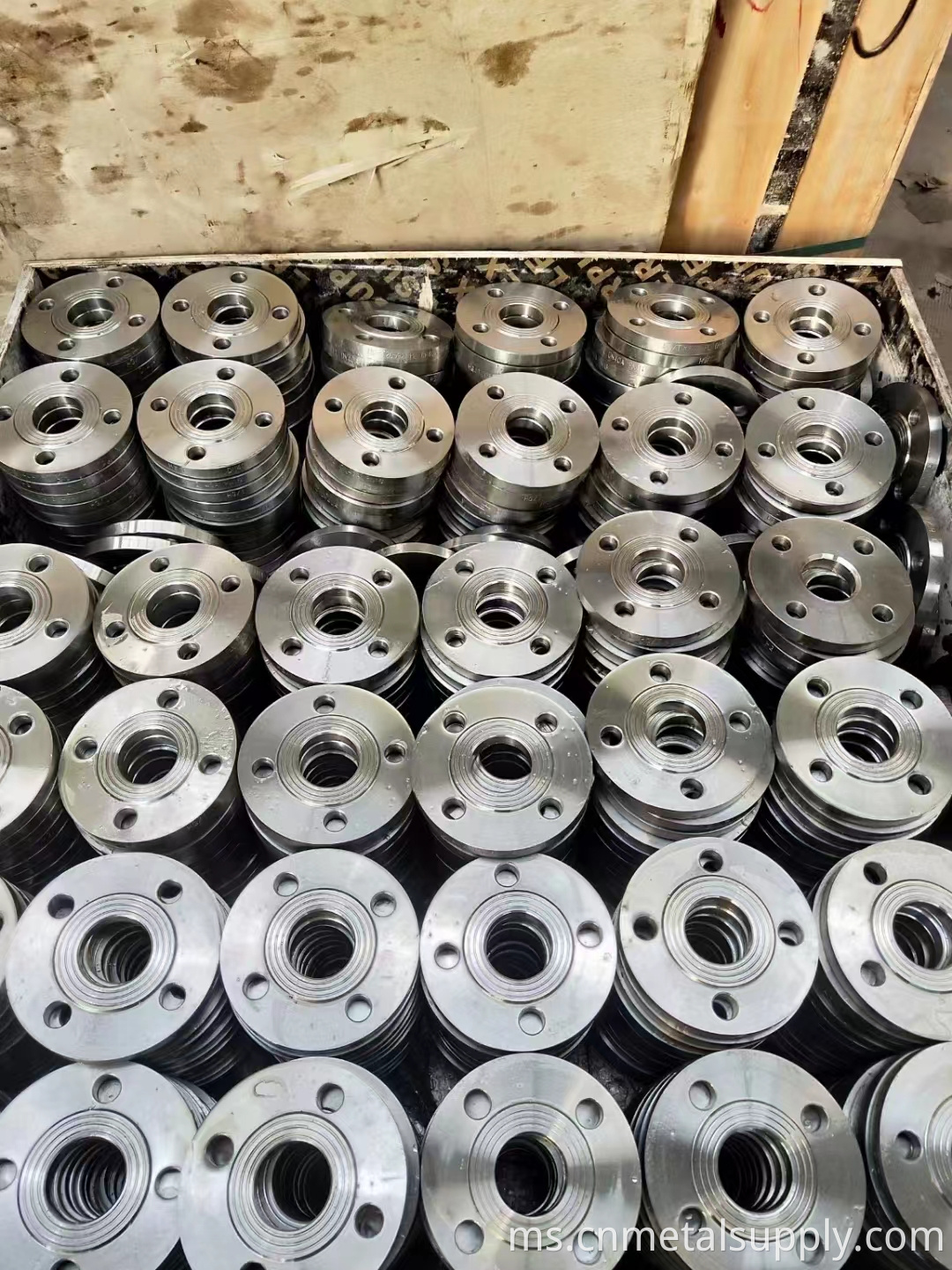

Perincian slip di flange
Gabungan bebibir dan siku atau flange dan tee tidak mungkin, kerana kelengkapan yang dinamakan tidak mempunyai lurus, yang lengkap meluncur dalam slip pada bebibir.
Saiz: 1/2 "hingga 60", DN 12mm hingga DN 1500mm.
Kelas Tekanan: Kelas 150 hingga Kelas 2,500, PN 2.5 hingga PN 250 Paip Keluli Alloy
Menghadapi: RF / RTJ
Bahan Flange Slip-On: Pipa keluli SMLS sejuk
Slip pada bebibir paip dalam stok termasuk slip AWWA pada bebibir paip, slip ANSI pada bebibir paip, slip kapal tekanan pada bebibir paip dan slip pada bebibir paip yang sepadan dengan OD dan penggerudian bebibir asme.
Keluli Cabon: A105, A350 LF2
Keluli tahan karat: A182 F304/F304L/F316/F316L/F321
Alloy Steel: F11, F12
|
Product Name |
Slip on pipe flanges |
|
Material |
Cabon steel: A105, A350 LF2 Stainless steel: A182 F304/F304L/F316/F316L/F321 Alloy steel: F11, F12 |
|
Size |
1/2” to 60”, DN 12mm to DN 1500mm |
|
Pressure Class |
Class 150 to Class 2,500, PN 2.5 to PN 250 |
|
Applications |
Blind Flanges are commonly used in petrochemical, pipe engineering, public services & water works. Blind pipe flanges are often used for high pressure applications. |
|
Delivery Time |
Usually within 7-10 days after receipt of advance payment |
|
Payment Terms |
T/T 30% Down Payment,Balance Will be Paid Before Shippment |
|
Advantage of Blind Flanges |
Slip-On flanges or SO flanges are commonly lower in price than weld-neck flanges, and to this effect are a popular choice for our customers. Low cost installation Less time needed to spent on ensuring the accuracy of the cut pipe They are somewhat easier to align The slip-on flanges have low hub because the pipe slips into the flange before welding The flange is welded both inside and outside to provide sufficient strength They prevent leakage |
| Nominal Pipe Size | Outside Diameter of Flange | Diameter of Raised Face | Thickness of Flanges Min. | Diameter of Bolt Circle | Diameter of Bolt Holes | Number of Bolts | Approximate Weight kgs |
| NPS | O | R | tf | W | I | n | |
| 1/2 | 90 | 34.9 | 9.6 | 60.3 | 15.9 | 4 | 0.44 |
| 3/4 | 100 | 42.9 | 11.2 | 69.9 | 15.9 | 4 | 0.64 |
| 1 | 110 | 50.8 | 12.7 | 79.4 | 15.9 | 4 | 0.90 |
| 1 1/4 | 115 | 63.5 | 14.3 | 88.9 | 15.9 | 4 | 1.13 |
| 1 1/2 | 125 | 73.0 | 15.9 | 98.4 | 15.9 | 4 | 1.50 |
| 2 | 150 | 92.1 | 17.5 | 120.7 | 19.1 | 4 | 2.38 |
| 2 1/2 | 180 | 104.8 | 20.7 | 139.7 | 19.1 | 4 | 4.09 |
| 3 | 190 | 127.0 | 22.3 | 152.4 | 19.1 | 4 | 4.97 |
| 3 1/2 | 215 | 139.7 | 22.3 | 177.8 | 19.1 | 8 | 6.20 |
| 4 | 230 | 157.2 | 22.3 | 190.5 | 19.1 | 8 | 7.18 |
| 5 | 255 | 185.7 | 22.3 | 215.9 | 22.2 | 8 | 8.83 |
| 6 | 280 | 215.9 | 23.9 | 241.3 | 22.2 | 8 | 11.55 |
| 8 | 345 | 269.9 | 27.0 | 298.5 | 22.2 | 8 | 20.07 |
| 10 | 405 | 323.8 | 28.6 | 362.0 | 25.4 | 12 | 28.87 |
| 12 | 485 | 381.0 | 30.2 | 431.8 | 25.4 | 12 | 44.18 |
| 14 | 535 | 412.8 | 33.4 | 476.3 | 28.6 | 12 | 59.07 |
| 16 | 595 | 469.9 | 35.0 | 539.8 | 28.6 | 16 | 76.36 |
| 18 | 635 | 533.4 | 38.1 | 577.9 | 31.8 | 16 | 94.51 |
| 20 | 700 | 584.2 | 41.3 | 635.0 | 31.8 | 20 | 123.94 |
| 24 | 815 | 692.2 | 46.1 | 749.3 | 34.9 | 20 | 187.90 |
| Norminal Pipe Size | O.D.of Flange, O | Min.Thick-ness of BL Flange, tf | Raised Fase Diam., R | Diam of Bolt Circle | No.of Bolt Holes | Diam.of Bolt Hole | Approxi-mate Weight kgs |
| 26 | 890 | 111.3 | 727 | 806.4 | 28 | 44.5 | 528.79 |
| 28 | 950 | 115.9 | 784 | 863.6 | 28 | 47.6 | 626.51 |
| 30 | 1020 | 127.0 | 841 | 927.1 | 28 | 50.8 | 789.17 |
| 32 | 1085 | 134.9 | 895 | 984.2 | 28 | 54.0 | 946.54 |
| 34 | 1160 | 144.2 | 953 | 1054.1 | 24 | 60.3 | 1158.72 |
| 36 | 1215 | 150.9 | 1010 | 1104.9 | 28 | 60.3 | 1323.63 |
